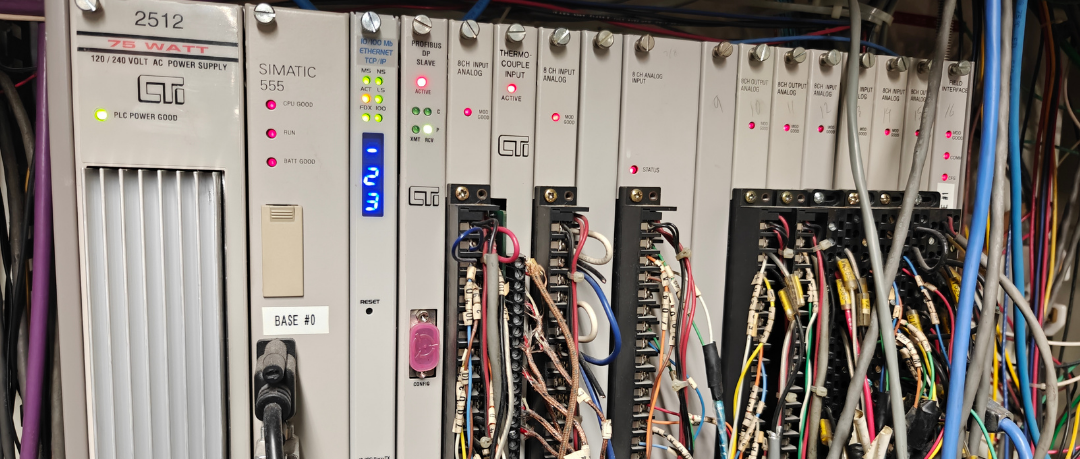

Controls Retrofit Cost: What Changes the Number

Quick Answer

Controls retrofit cost is driven by how much of the existing system is known before engineering begins. Current drawings, verified I/O, recoverable PLC/HMI programs, clearly defined interfaces, and a practical startup window make the scope and budget more predictable. Missing documentation, undocumented modifications, panel constraints, communication dependencies, and compressed production windows increase engineering effort and uncertainty.

“How much will this controls retrofit cost?” is a fair question, and usually one of the first questions a manufacturing engineer or plant manager has to answer internally.

The useful answer depends less on the label on the PLC and more on the condition and definition of the machine around it. Two projects can both be described as a PLC upgrade and require very different degrees of engineering, hardware, panel work, field verification, programming, and startup support.

A dependable budget starts by separating what is known from what is still assumed. The more of the existing system that can be verified before hardware is selected, the more useful the budget conversation becomes.

At a Glance: What Changes the Number

Why Controls Retrofit Cost Is Hard to Quote from a Description

A short description such as “replace an obsolete PLC” can mean several different things. It may be a clean controller replacement with current drawings, known I/O, and an existing panel that can be reused. Or it may be a machine that has been modified for years, has no reliable backup, includes undocumented network devices, and needs significant panel work before the controls can be modernized.

The PLC is only one part of the project. The cost also reflects the work required to understand the present system, make the replacement fit the machine, verify wiring and logic, preserve required interfaces, and start the machine back up in a way that works for production.

A number given too early can sound precise without being useful. It usually has one of two problems: work that will still need to happen is left outside the initial scope, or a large contingency is included because too much of the machine is still unknown. Neither is a strong basis for a capital request.

The Primary Drivers of Controls Retrofit Cost

Documentation Condition: Usable Drawings or Reverse Engineering

Documentation condition is often the first thing that changes an estimate. Good electrical drawings, a current PLC program, HMI files, an I/O list, and a bill of materials give the project a verified starting point. They allow engineering time to stay focused on the change rather than reconstructing the existing control system.

When drawings are missing or no longer match the panel, the work changes. Field wiring may need to be traced, devices identified, I/O addresses confirmed, and program files compared with what is actually running. That is not padding in the estimate. It is the engineering required to make sure the new system is built around the machine that exists, not the machine the old documentation describes.

This is why documentation remains a cost driver even when a full drawing package is not the primary deliverable. The condition of the documentation affects how much discovery is required before the design can be dependable. ISA’s control-system documentation guidance reinforces the role of drawings, logic documentation, specifications, and operating information across design, construction, and maintenance.

Scope Clarity: Defined Work Versus Open Questions

A well-defined scope gives everyone a better chance of staying on budget. It identifies the machine or part of the line involved, what is being replaced, what remains, which interfaces have to keep working, and what needs to be accomplished during the startup window.

The questions that remain open are often the same questions that change the number later. Does the HMI need to be recreated or only updated? Will the existing logic be machine-converted to the new platform, or recreated from scratch to clean up the code and add or change functionality? Is a drive being retained, replaced, or reconfigured? Does a downstream machine expect a particular handshake? Are safety-related devices part of the work, and who owns any required safety review?

Some unknowns are normal. The important part is to name them. A useful scope distinguishes between defined included work, assumptions that still need confirmation, customer responsibilities, and items outside the project.

Hardware Selection: Equivalent, Specified, or Constrained by the Machine

Hardware is more than a purchase-order line. The selected platform affects programming, communications, spare-parts strategy, panel layout, and how much of the existing system can remain.

Sometimes a modern equivalent can be selected around the actual I/O, power, and communication requirements. In other cases, the plant has a standard platform, approved vendor list, installed architecture, or device dependency that constrains the choice.

The same applies to specialty I/O, motion, drives, safety components, network hardware, and operator interfaces. A project built around standard discrete I/O is different from one that must preserve analog signals, serial devices, fieldbus nodes, servo systems, or drive dependencies.

The practical question is not simply, “What PLC are we using?” It is, “What does the machine need the control system to do, and what existing dependencies have to be preserved?”

Panel Work: Reuse, Rework, or a New Build

One retrofit may fit cleanly into an existing enclosure with modest rework. Another may need a new panel because the enclosure lacks room, the layout is difficult to support, the hardware changes require a different arrangement, or the existing condition is not a dependable baseline for another long service life.

There is also a middle-ground approach that can make sense when the enclosure and major power components are still serviceable. In those cases, components such as overloads, contactors, and transformers may be retained while a replacement backpanel is built off-site. During the planned production window, the field wiring can be disconnected, the new backpanel installed, and the field wiring reterminated. This can preserve higher-cost components while reducing how much fabrication and wiring work has to happen on the plant floor.

Panel work changes both material and labor. It can include enclosure changes, power distribution, wiring, terminals, labeling, drawings, fabrication, backpanel replacement, and the effort required to move or re-land field wiring. It also changes how much work can be completed and verified before the planned production window.

Applicable machine standards and the actual installation matter here. NFPA 79 addresses safeguards for electrical and electronic equipment on industrial machinery; when it applies, its requirements are part of the engineering context rather than a generic add-on.

I/O Count and Verification Requirements

Every physical input and output represents more than a point on an I/O card. It has a device, wire, terminal, label, address or tag, function in the logic, and often an operating condition that must be checked. The count matters, but the type of I/O and the level of verification matter just as much.

A higher I/O count generally means more hardware, wiring work, programming, and test time. Analog signals, safety circuits, remote I/O, communication-connected devices, and anything tied to a critical sequence usually require more attention than a straightforward discrete point.

An I/O list is not proof that the machine matches it. Field verification is what turns that list into a dependable baseline for programming and testing. It is also what helps prevent the expensive version of “the drawing said it was this input” during startup.

Startup Complexity: Planned Work Versus Emergency Replacement

A scheduled startup window gives the plant and controls team time to prepare. Hardware can be checked, panels can be built, documentation gaps can be found, and open questions can be resolved while the machine is still available for verification.

Emergency replacement work starts with less time and usually less information. Parts may need to be sourced immediately, he status of the current backup program may be uncertain, and production may be waiting while the team determines what the machine actually needs. That is a different scope and a different level of exposure than a planned retrofit.

The production window itself also changes the work. A simple machine with a generous planned window is not the same project as a line with a short shutdown, multiple upstream or downstream dependencies, or limited access. The goal is not to make the project sound burdensome. It is to account for the preparation and verification required before production depends on the system again.

Travel and Site Requirements

Site conditions are part of the project. Distance, access rules, required orientation, work-hour restrictions, available plant support, and whether work must happen during a shutdown or weekend can all affect the effort required to execute the scope.

What Lowers the Cost, and What Raises It Later

The lowest-risk way to control industrial controls project cost is not to strip engineering out of the scope. It is to reduce avoidable unknowns before the work starts.

Things that usually reduce cost or make it more predictable:

• Current drawings, PLC/HMI backups, I/O information, and part numbers are available before design begins.
• The project boundary is clear, including what is being changed now and what can wait for a later phase.
• Hardware requirements and constraints are confirmed before fabrication or field work begins.
• The production window is planned with access to the right operations and maintenance contacts.
• A machine walkthrough verifies the existing condition instead of relying only on old documents.
• Drawings are missing or do not reflect the field condition.
• Scope gaps are discovered after the panel is designed or hardware is ordered.
• Hardware or interface requirements are incomplete and have to be corrected late.
• Unknown or undocumented network devices that interface with the PLC
• Short startup windows force more work into a limited site visit.
• Emergency conditions require decisions before documentation and verification are complete.

Things that commonly add cost or create a budget change later:

None of these automatically makes a project a bad fit. They simply need to be visible. A lower initial number that assumes away known risk is not always the lower total project cost.

What a Controls Integrator Should Include in a Quote

A good quote can’t necessarily predict every field surprise. It does need to make the basis of the number clear.

For a controls retrofit, the quote or accompanying scope should identify the major deliverables: included hardware and panel work, engineering and programming, expected documentation, verification approach, and planned startup support. It should also identify assumptions, customer responsibilities, site and travel conditions, and exclusions or dependencies that could change the work.

That allows an engineer or purchasing team to compare proposals on more than the total. One proposal may include field verification, panel work, documentation, programming, and startup support. Another may assume the existing drawings are correct and price only the controller change. Neither is automatically wrong, but they are not the same scope.

When comparing proposals, ask:

1. What existing information is the estimate based on, and what has been field-verified?
2. Which hardware, panel modifications, interfaces, programming, and documentation are included?
3. How will I/O, safety-related devices, and communications be checked before startup?
4. What does the quote assume about the production window, site access, and plant support?
5. What information or decision is still needed before the number can become more definite?

Those questions get past the total line and into the work the plant is actually buying.

What a RFQ Conversation Actually Produces

A scoping conversation is a practical first pass at whether there is enough information to discuss a realistic range and what would need to be verified before a firm scope is written.

The discussion should establish the machine involved, the controls problem being solved, the documentation that exists, the intended production window, and the constraints most likely to affect the project. If the situation is straightforward, that may be enough to define the next step. If it is not, the conversation should identify what information, field review, or engineering work would remove the biggest unknowns.

That is the path to a number that helps support a real capital decision instead of a number that only looks useful on day one.

Frequently Asked Questions

How much does a controls retrofit cost?

Controls retrofit cost depends on the condition and definition of the existing machine, not just the PLC being replaced. The main drivers are documentation quality, scope clarity, hardware and panel requirements, I/O and verification work, startup constraints, and site conditions. A useful range becomes more dependable as those variables are verified.

What affects the price of a PLC upgrade?

PLC upgrade cost is affected by whether drawings and program backups are current, the number and type of I/O points, network and device dependencies, the selected hardware platform, required panel work, and the amount of testing and startup support needed. A straightforward controller replacement is a different scope from a machine that requires reverse engineering or a new panel.

Why do controls projects go over budget?

Controls projects commonly exceed the original budget when the estimate is based on assumptions that do not match the field condition. Missing or inaccurate drawings, unrecognized I/O or network dependencies, scope gaps found after hardware is ordered, short startup windows, and emergency conditions can all increase the work and unexpected costs.

What should a controls integrator include in a retrofit quote?

A useful controls retrofit quote identifies the included hardware and panel work, engineering and programming, documentation, verification approach, planned startup support, assumptions, customer responsibilities, site conditions, and exclusions or dependencies. This lets the buyer compare the scope behind each proposal instead of comparing only total price.

Get to a Number Without Guessing

If your team is trying to put a realistic number around a PLC upgrade, panel replacement, or broader controls retrofit, start with what is known and what still needs to be verified. Liberty Automation can help work through the scope, identify the biggest unknowns, and determine what needs to happen before the project can be priced confidently.
